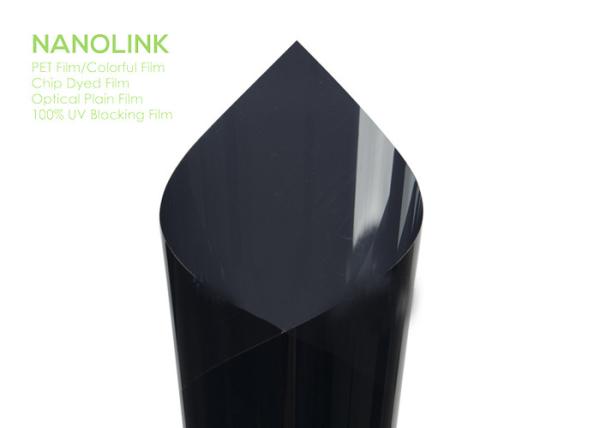

IR Window Tinting UV400 Nano Ceramic Solar Film VLT35% IR Reduction
100% UV Protection window film
Product Advantage
1) It's so easy to peel off.
2) It’s anti-explosion,heat insulation,anti-glare and anti-sight.
3) After removed the products , there is no residue.
4) Good and steady adhesion.
5) Good antistatic ability.
6) These products are produced in clean-dust room.
7) Two years guarantee time,no bubble and no fading colour.
8) High temperature resistance.
Brand : Nanolink
Model :UV400
Color : Customized according to customer's requirements
Producing Area : Shanghai China
Color: light & green
Item Name | Alilula UV400 Car Window Tint Film | Thickness | 50um |
Material | High flexible anti-uv function PET film | VLT rate | 5% --80% |
Color | light yellow,light green ,light blue and etc.(color can be
customized.) | IR rejection | 95%-100% |
Size | 1.52*4000m/6000m/8000m (Size can be customized) | UV rate | 100%,UV400 |
glue | Removable adhensive glue | Life span | 10-20 years |
Stand Up Against | Water,heat,dust,grease, salt,weak acids oil | Service | OEM/ODM, Free sample offered |
Function & Features | Made from anti-uv master batch,has anti-uv function itself,not
coating. | | 440kg/roll for 1.56*6000m |
| Within 24hours in small order; Within 7-30 days after receipt of
your payment | | |
Carton size | 1.7*0.65*1.65m | Certification | CE,IS0 9001,SGS |
Advantages :
Protect your eyes - resist blue shortwave radiation
Anti blue films of Nalinke can filter 350nm-410nm anti-harmful rays
of shortwave blue light in high energy region of the visible light,
prevent the damage of UV on the eye lens and produce also cataract,
blue light causes retina congestion, and lens becomes convex, then
produce myopia.
Sunscreen effect: 20 times more than ordinary sunscreen cream
1) Sunscreen Index is more than 400, anti blue films of Nalinke
give you complete UV-protection, and allows you to stay away from
damage of UV.
2)The index of SPF is higher , the protection is the greater, SPF
of ordinary sunscreen is between 4-30.
UV blocking of Full-waveband
1) Anti-blue films of Nalinke with "UV400" can block UV of
Full-waveband .
2) Reflecting full-waveband and absorbing ultraviolet rays.
Item | Unit | Reference Value | Test Value |
Average Thickness | μm | 23 | 23±1 |
Tensile Strength | MD | Kg/mm2 | 33 | 27±5 |
| TD | Kg/mm2 | 27.5 | 26±5 |
Elongation | MD | % | 126 | 140±40 |
| TD | % | 110 | 130±40 |
Heat Shrinkage | MD | % | 1.4 | 1.5±1 |
| TD | % | 0.3 | 0±1 |
Friction Shrinkage | US | - | 0.25 | 0.4±0.2 |
| UK | - | 0.22 | 0.3±0.2 |
Haze | % | 1.5 | ≤2.0 |
Definition | % | 99.8 | ≥99 |
Wetting Tension | Dyne/cm | 52 | ≥50 |
VLT | % | 88 | 88±2 |
IRR | % | 11 | 11±2 |
UVR | % | 99 | 99±1 |
company
Innovation& Quality is our eternal belief!
Nanolink has nanometer metallic oxide preparation, grinding
scattering, modified function of masterbatch as core technology,
and is based on the research and development of functional
materials from optical PET film. Products are widely used
photoelectricity, construction, automobile and other fields,
innovation and quality is our eternal belief!
Combine·Exceed for Nanolink Materials
In order to maintain the worldwide technological competitiveness
and open up a new field for film materials, Nanolink integrates the
technology of functional masterbatch dispersion, aggregation, BOPET
and online surface coating. Combine now·Exceed future...
Advantage
Nanolink has independent research and development of advanced
technology, superior R&D philosophy, well-stocked supply of raw
material and senior-level technical support, as well as the strict
quality control, can produce film of advanced technology, and serve
to markets, in which terminal users increase rapidly around the
world.
Laboratory
Laboratory of Nanolink is a space station, which can let people
more close to the future, and scientists innovate, who have a
common goal. Innovation is everywhere.We make a dream and read a
dream...
Company’s background
Shanghai Nanolink Materials Co., Ltd is a high-technology
enterprise, which has nanometer materials preparation, grinding
scattering, modified function of masterbatch as core technology, is
based on the research and development of functional materials from
optical PET film, and integrates the technology of functional
masterbatch dispersion, aggregation, BOPET and online surface
coating.
in the foreseeable future, Nanolink will use its own advanced
technology and intellectual property rights, integrate the world's
leading expert team, and continue to invest in the existing and
future advanced technology, in order to realize the development
goals and look forward to more breakthrough in the film industry in
the near future.
Core products of Nanolink current : PET Chip Dyed Film, high
blocked UV film, color electronic tape of base film , carbon black
(kaben series) constant color of base film, etc.
Production equipment: German Bruckner Production Line
This production line is current most advanced plastic film in the
world, computer can control and complete the speed, pressure and
temperature of running automatically, regardless of the quality,
production and energy consumption of the product has big
superiority.
Technology line
Unique technology of three-layer co-extrusion (transparent 3 μ+
color 17 μ+ transparent 3 μ)
Unique technology of three-layer co-extrusion from Nanolink can
randomly assemble all kinds of functional materials and develop
rich products.
Research & Development Center
We have professional talent team to development of nanometer
materials, technology of UV curing and molding, precision coating,
technology of extrusion and molding, vacuum sputtering, etc.,
research and develop to produce the most excellent window films,
which can meet customer’s requirement, and at the same time can
also make innovative advantaged products, which suit dynamic
development of the market.Because of profound originality and
persistent research and development, window films of Nanolink have
infinite vitality!
Now our current products as below :
Inorganic nanoparticles Ceramic Chip Dyed Series
Model | VLT | IR | Haze | Weather resistance time | UV Blocking |
IR 7080 | 70% | 80% | 0.5% | 10Years | 48% |
IR8080 | 80% | 80% | 0.5% | 10Years | 41% |
IR2080 | 20% | 80% | 0.5% | 10Years | 86% |
IR7040 | 70% | 40% | 0.5% | 10Years | 99% |
Organic Chip Dyed Series
Model | VLT | IR | Haze | Weather resistance time | UV Blocking |
TUV16 | 13% | 40% | 1.5% | 2-3Years | 100% |
TUV25 | 22% | 40% | 1.5% | 2-3Years | 100% |
TUV30 | 29% | 40% | 1.5% | 2-3Years | 100% |
CD15918 | 18% | 13% | 1.5% | 2-3Years | 40% |
LC Our Service:
Besides our wide variety of products we are able to offer
customized solutions and special developments to meet the
particular demands and needs of our customers.
For our product we can provide you :
Professional Free Design
OEM Support
Min Order Qty
Fast Delivery
Good after sale service
Free Sample
For your visiting our company we can offer you :
1) Pick you up at the airport;
2) Book hotel for you;
3) Guide you a happy trip in Shanghai.
4) Pick up you from your hotel to our yard and check our products.
>> Free Sample available on Request!
