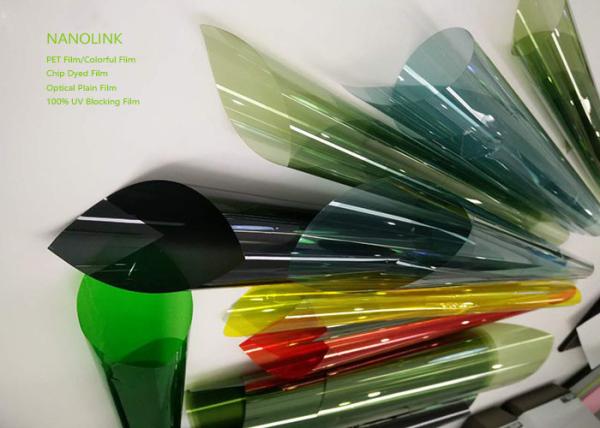

UV/IR 99% cutting off nano ceramic heat-insulation construction
window film for car or building UV-curing technology
Advantages of NANOLINK film:
1. Reject ultraviolet, Ultraviolet light can cause skin burns, skin cancer and the car
fade ageing, NANOLINK car film can reject 99% ultraviolet.
2. Enhanced security, The special structure and adhesion force can enhance the strength
of car window glass, slow down the thieves.
3. Protect the personal safety, When the car Window was broken, NANOLINK car film can stick the broken glass on the window, protect the
people in the car from harm.
4. Reduce solar heat, NANOLINK car film can significantly reduce the temperature inside the car,
save about 10% energy consumption
Product Description:
High transparent IR FILM
High VLT & High IR & LOW reflective
Using nano-metal oxide dispersion and polymerization technology,
different from other factories in the PET surface coated
nano-ceramic .
Put nano ceramic mixing pet make masterbatch via two –way stretch
film .
So that product performance to achieve an unprecedented stability
Project | Technical performance | Test Value | Test / calculation method | Detective equipment
|
Visible Light
| Refractive index of Visible Light | 67.33 | GB/15137.2 | Daojing UV-3600 type spectrophotometer |
Refractive index of Visible Light | 9.68 | GB/15137.2 | Daojing UV-3600 type spectrophotometer |
Solar energy | Solar energy directly blocking rate | 56.51 | GB/2680 |
|
Direct solar reflectance
| 8.93 | GB/2680 | Daojing UV-3600 type spectrophotometer |
The total solar energy blocking rate | 45.04 | GB/2680 | Daojing UV-3600 type spectrophotometer |
Shading Coefficient
| 0.62 | GB/2680 |
|
UV
| UV-blocking rate
| 98.68 |
|
|
Thermal functional | Haze |
| GB/2680 | Shenguang WGT-S haze meter |
Item
| Unit | Test Value | Test method |
Tensile Strength | MD | Mpa | 240 | ASTM D 882 |
TD | Mpa | 264 | ASTM D 882 |
Elongation | MD | % | 149 | ASTM D 882 |
TD | % | 132 | ASTM D 1044 |
Anti-wear properties (according to standard, difference value
should be before and after testing haze of sample ≦ 4% | % | ≦ 2% | ASTM D 1044 |
Competitive Advantages:
1. Equipment:
We have the most advanced Germany Bruckner Production Line
2. Competitive price:
We are the manufactory, all materials made by ourself .
3. Accuracy:
We have the strict quality control system. Good reputation in the market, ensure our products are exactly
what you want.
4. Materials:
All cast films are made of high-quality raw materials.
5. Certificate:Our products are certified by SGS, ISO, FDA etc.
6. After Service:
We can prepare all documents you need, and solve all problems
related to the current order.
Application:
Base PET film mainly for the construction and automotive film
Our Service:
Besides our wide variety of products we are able to offer
customized solutions and special developments to meet the
particular demands and needs of our customers.
Professional Free Design
OEM Support
Min Order Qty
Fast Delivery
Good after sale service
Free Sample
>> Free Sample available on Request!
