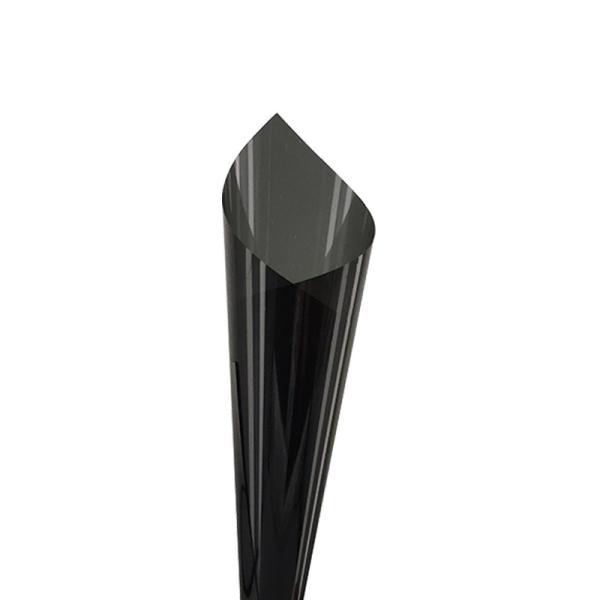

Explosion Proof UV Protection Window Film For Cars 1.56M*4000M
UV Protection Window Film details
1. Transmittance of the film and clarity
This is the car used in the film about the most important traffic
safety performance.
2. Insulation properties
The rate of window insulation film insulation is an important
indicator of performance.
3. Explosion Performance
This is also involved in another important safety performance.
Explosion-proof high-quality film itself has a strong toughness,
broken glass after the capsule will not be flying Nianlao wounding,
and strong performance of its impact.
4. UV-blocking rate
High-quality film, this indicator is generally not less than 98
percent, up to 99 percent higher. UV-blocking high rate can
effectively prevent the vehicle were an excessive amount of
ultraviolet radiation, burns skin, but also the protection of car
stereos will not be drying bad.
5. Colors
According to color and body-loving individuals to matching the
colors. Usually shallow green, blue, gray, brown, natural color,
and so more comfortable on the eye color.
6. Durability
General regular film manufacturers have a high quality guarantee
period, usually 10-15years.
UV Protection Window Film Parameters
| Item | Unit | Reference Value | Test Value |
| Average Thickness | μm | 23 | 23±1 |
| Tensile Strength | MD | Kg/mm2 | 33 | 27±5 |
| TD | Kg/mm2 | 27.5 | 26±5 |
| Elongation | MD | % | 126 | 140±40 |
| TD | % | 110 | 130±40 |
| Heat Shrinkage | MD | % | 1.4 | 1.5±1 |
| TD | % | 0.3 | 0±1 |
| Friction Shrinkage | US | - | 0.25 | 0.4±0.2 |
| UK | - | 0.22 | 0.3±0.2 |
| Haze | % | 1.5 | ≤2.0 |
| Definition | % | 99.8 | ≥99 |
| Wetting Tension | Dyne/cm | 52 | ≥50 |
| VLT | % | 88 | 88±2 |
| IRR | % | 11 | 11±2 |
| UVR | % | 99 | 99±1 |
Now our current products as below :
Inorganic nanoparticles Ceramic Chip Dyed Series
| Model | VLT | IR | Haze | Weather resistance time | UV Blocking |
| IR 7080 | 70% | 80% | 0.5% | 10Years | 48% |
| IR8080 | 80% | 80% | 0.5% | 10Years | 41% |
| IR2080 | 20% | 80% | 0.5% | 10Years | 86% |
| IR7040 | 70% | 40% | 0.5% | 10Years | 99% |
Organic Chip Dyed Series
| Model | VLT | IR | Haze | Weather resistance time | UV Blocking |
| TUV16 | 13% | 40% | 1.5% | 2-3Years | 100% |
| TUV25 | 22% | 40% | 1.5% | 2-3Years | 100% |
| TUV30 | 29% | 40% | 1.5% | 2-3Years | 100% |
| CD15918 | 18% | 13% | 1.5% | 2-3Years | 40% |
